AR29135108 - KSB Calio Pro 025-060 G1 1/2 180 mm, Rp 1 PN6/10/16

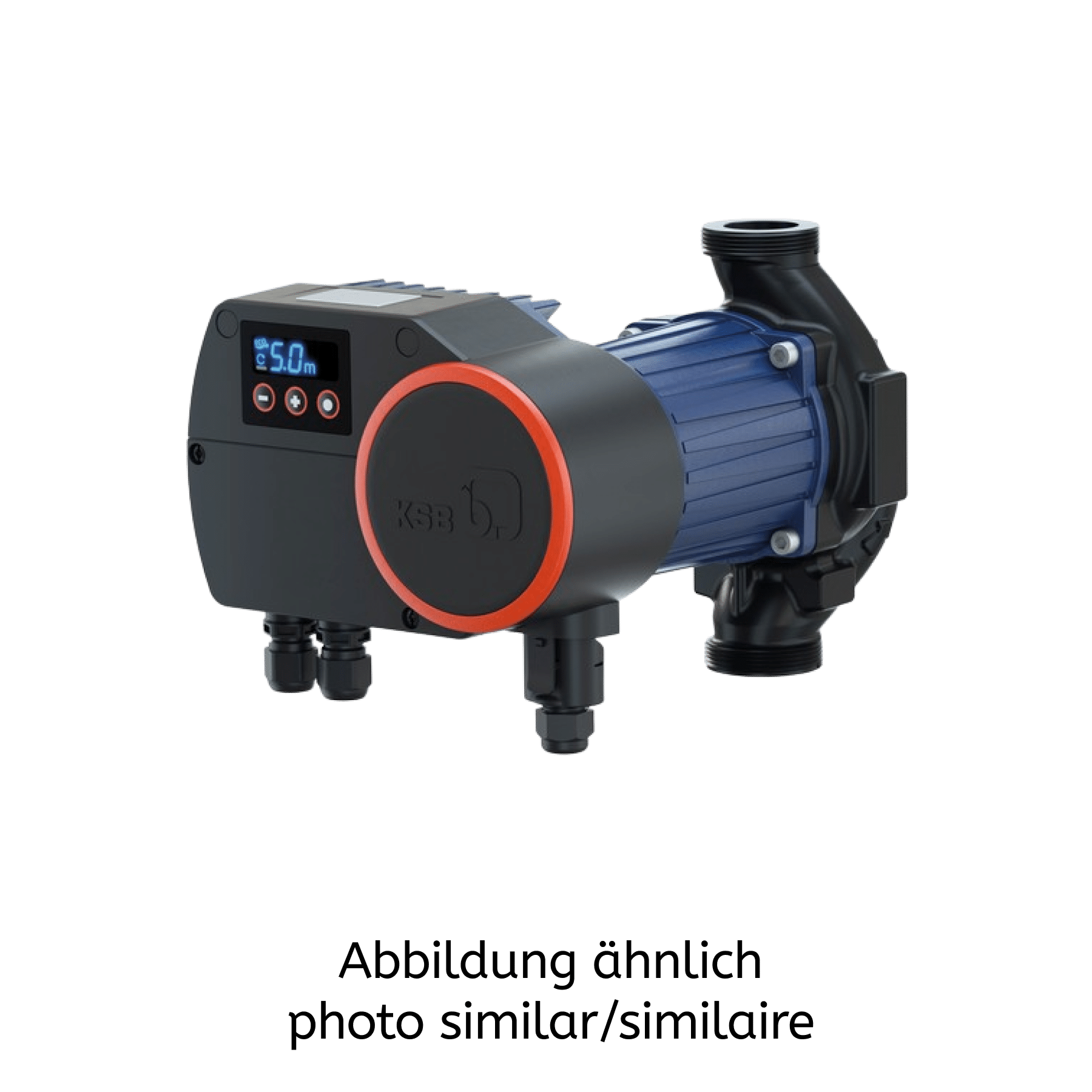

KSB Calio Pro - The powerful and versatile high-efficiency heating circulation pump The Calio Pro from KSB is a powerful and versatile wet-rotor pump with infinitely variable speed control. It is ideal as a heating circulation pump, hot water heating pump, coolant pump or circulation pump in air conditioning systems and as a circulation pump in closed cooling circuits and industrial circulation systems. Construction and design
• Maintenance-free, highly efficient wet-rotor pump (glandless)
• Pumped liquid-lubricated special plain bearing Drive
• Highly efficient permanent magnet synchronous motor, brushless and self-cooling with infinitely variable differential pressure control
• Integrated motor protection
• Electrical data: 1~230 V AC +/- 10 %, frequency 50 Hz/60 Hz
• Protection class: IPX4D
• Thermal class: F
• Temperature class: TF 110
• Energy efficiency index (EEI): ≤ 0.20
• Interference emission according to EN 55014-1, EN 61000-3-2, EN 61000-3-3
• Interference immunity according to EN 55014-2 Connections
• Threaded or flanged connection
• Available in pressure classes PN6, PN10 and PN16 Operating modes
• Constant pressure control
• Proportional pressure control
• Dynamic control (Dynamic Control)
• Actuator operation with 3 speed levels Pumped media
• Heating water in accordance with VDI 2035
• Higher viscosity media (water-glycol mixture up to a mixing ratio of 1:1) Special features The Calio Pro exceeds the requirements of the 2015 ErP regulations and ensures future-proof performance thanks to its optimized efficiency levels. The standard insulation shell reduces heat loss and increases overall energy efficiency. It is operated via an intuitive display, which makes set-up and control particularly easy. Durability and reliability are ensured by the robust ceramic carbon bearing and the high quality of workmanship. With a wide range of sizes and pressure classes, the Calio Pro offers maximum flexibility for a wide variety of applications. Its combination of efficiency, ease of use and flexibility makes the Calio Pro the perfect choice for professional heating and cooling systems with high demands. weniger anzeigen
