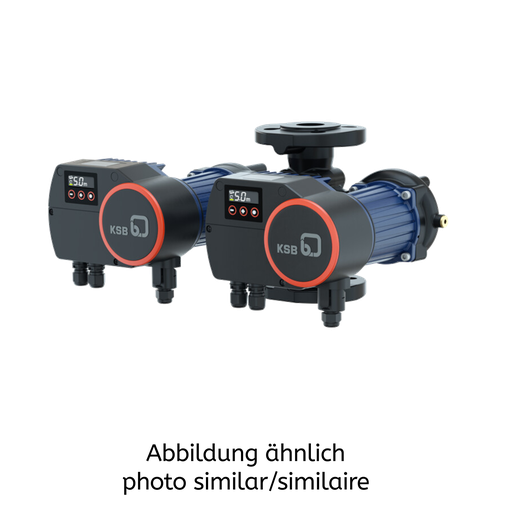

AR29135138 - KSB Calio Pro Z 050-080 DN50 240 mm, PN6/10/16

KSB Calio Pro Z - The highly efficient and reliable twin heating pump for the highest demands The Calio Pro Z from KSB is a highly efficient wet-rotor pump in twin pump design. It offers a wide range of applications as a heating circulation pump, hot water heating pump, coolant pump or circulation pump in air conditioning systems and as a circulation pump in closed cooling circuits and industrial circulation systems. Construction and design
• Maintenance-free wet-rotor pump in twin design (glandless)
• Pumped liquid-lubricated special plain bearing Drive
• Highly efficient permanent magnet synchronous motor, brushless and self-cooling
• Infinitely variable differential pressure control
• Integrated motor protection
• Electrical data: 1~230 V AC +/- 10 %, frequency 50 Hz/60 Hz
• Protection class: IPX4D
• Thermal class: F
• Temperature class: TF 110
• Energy efficiency index (EEI): ≤ 0.20
• Standards: Interference emission according to EN 61000-6-3, interference immunity according to EN 61000-6-1 Connections
• Screw or flange connection
• Available in pressure classes PN6, PN10 and PN16 Operating modes
• Constant pressure control
• Proportional pressure control
• Dynamic control (Dynamic Control)
• Actuator operation with 3 speed levels Pumped media
• Heating water according to VDI 2035
• Higher viscosity media (water-glycol mixture up to a mixing ratio of 1:1)

Special features The Calio Pro Z ensures maximum operational reliability thanks to the integrated automatic fault switchover in the dual pump management system. This guarantees continuous operation even in the event of malfunctions or failures. The standard insulation shell effectively reduces heat loss and increases overall energy efficiency. The pump offers intuitive operation via a user-friendly display. Robust ceramic carbon bearings and high-quality materials ensure a long service life and low-maintenance operation. With various sizes in pressure classes PN6, PN10 and PN16, the Calio Pro Z can be used flexibly for a wide range of applications. It is the ideal solution for professional heating and cooling systems that require maximum efficiency, reliability and flexibility. weniger anzeigen
