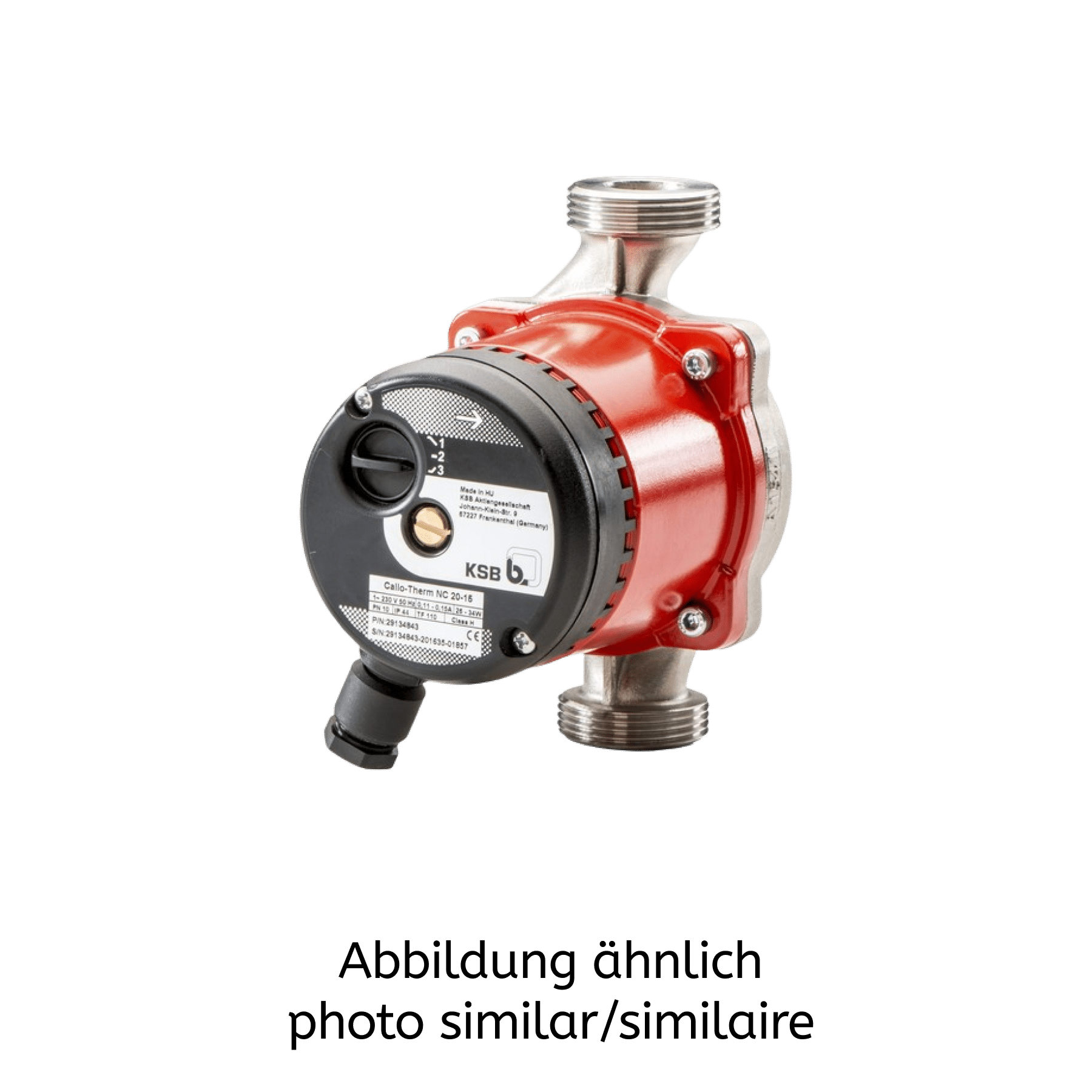

AR29134844 - KSB Calio-Therm NC 020-030 G1 1/4 150 mm, Rp 3/4 PN10

KSB Calio Therm NC - The wet-rotor pump for versatile circulation applications for drinking water, domestic hot water and heating The Calio Therm NC from KSB is a wet-rotor pump that has been specially developed for use in circulation systems for drinking water supply and related applications in industrial and building services engineering. As a first-class energy efficiency heating pump, it offers a reliable and maintenance-free solution for heating, cooling and circulation systems. Its compact design and simple installation make it the ideal choice for radiator and underfloor heating systems and as a hot water heating pump or circulation pump in air conditioning systems. Construction and design
• Maintenance-free, highly efficient wet-rotor pump (glandless)
• Pumped liquid-lubricated special plain bearing Drive
• Highly efficient electric motor
• Integrated motor protection
• Electrical data: 1~230 V AC ± 10 %, frequency 50 Hz
• Protection class: IP44
• Thermal class: F
• Temperature class: TF 110
• Energy efficiency index (EEI): ≤ 0.20
• Interference emission according to EN 61000-6-3
• Interference immunity according to EN 61000-6-2 Connections
• Screw connection Operating modes
• 3-stage fixed speed operation

Pumped media
• Heating water according to VDI 2035
• Higher viscosity media (water-glycol mixture up to a mixing ratio of 1:1)
• Drinking water and water for food processing in accordance with TrinkwV 2001 Special features

The Calio Therm NC is an unregulated drinking water pump with a robust ceramic bearing that ensures a long service life and low-maintenance operation. Thanks to its flexibility, the Calio Therm NC is ideal as a drinking water circulation pump, circulation pump and heating pump in air conditioning systems and for radiator and underfloor heating systems. With its combination of state-of-the-art technology, high efficiency and easy handling, the Calio Therm NC is a sustainable solution for a wide range of industrial and building services applications. weniger anzeigen
