AR14777 - KSB Etanorm ETNY 125-100-250 SG DB08LA300754B Fig. 0
5579.95 €

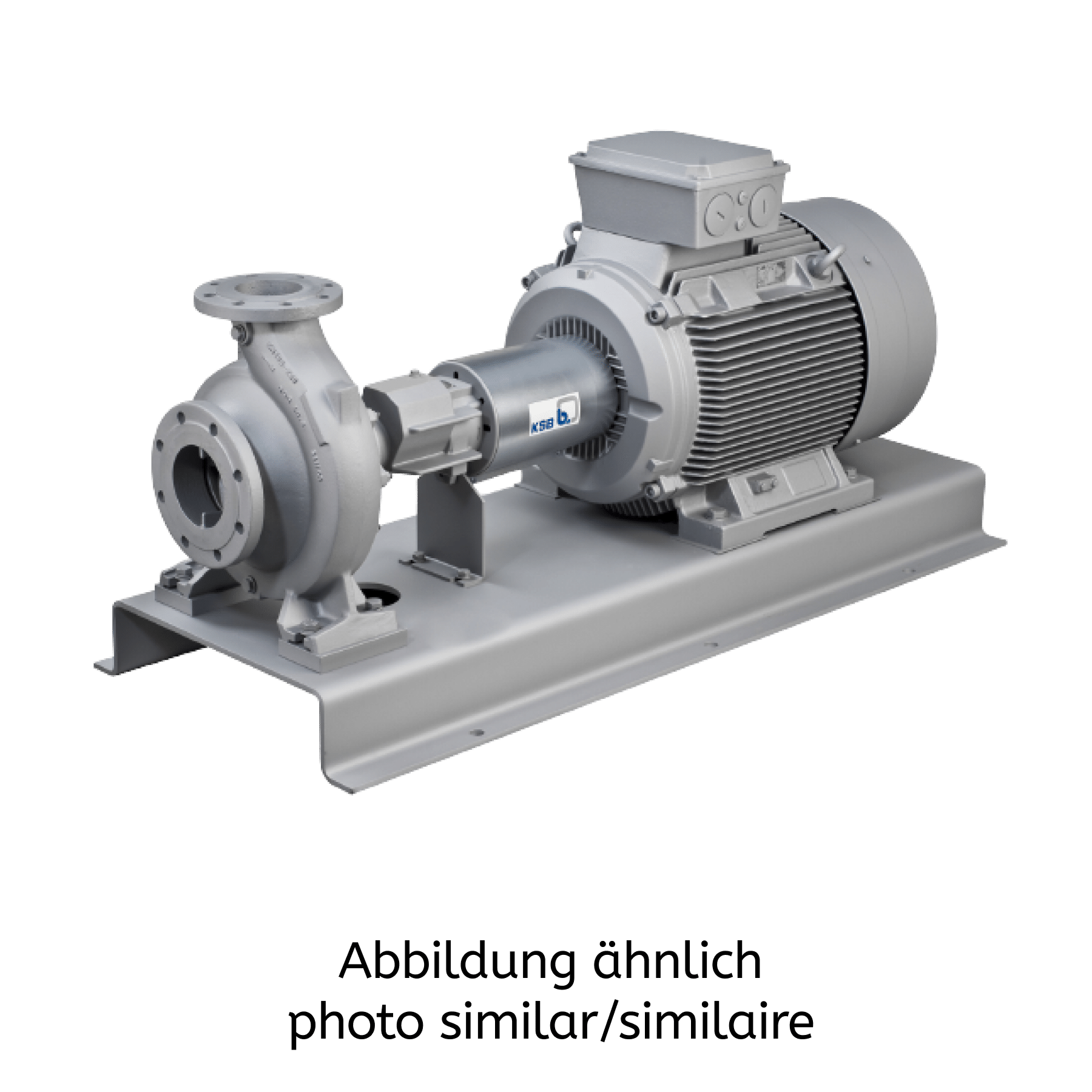

Image similar
Product Data
Reference Number:
AR14777
Manufacturer:
KSB
Series:
Etanorm-SYT
Size:
100-250
RPM:
2900 RPM
Impeller Diameter:
236 mm
Q (Flow Rate):
Min: 22.30
Max: 190.00
m³/h
H (Head):
Min: 11.20
Max: 19.50
m
Power:
7,5 kW
Condition:
B1: unused / as new
Shipping Weight:
123.00 kg
Price:
5579.95 €
Supplier:
ABResale
Documents
Etanorm-SYT
Horizontal single stage volute casing pump in process design, performance and dimensions to EN 733, radially split volute casing with integrally cast pump feet, replaceable wear rings, closed radial impeller with spatially curved blades, Single mechanical according to EN 12756, double mechanical EN 12756th. For heat tr
...
