AR18255 - KSB Alarm switch gear AS 0 1-230V, 50Hz, Alarmsignal 85db(A)

301.69 €

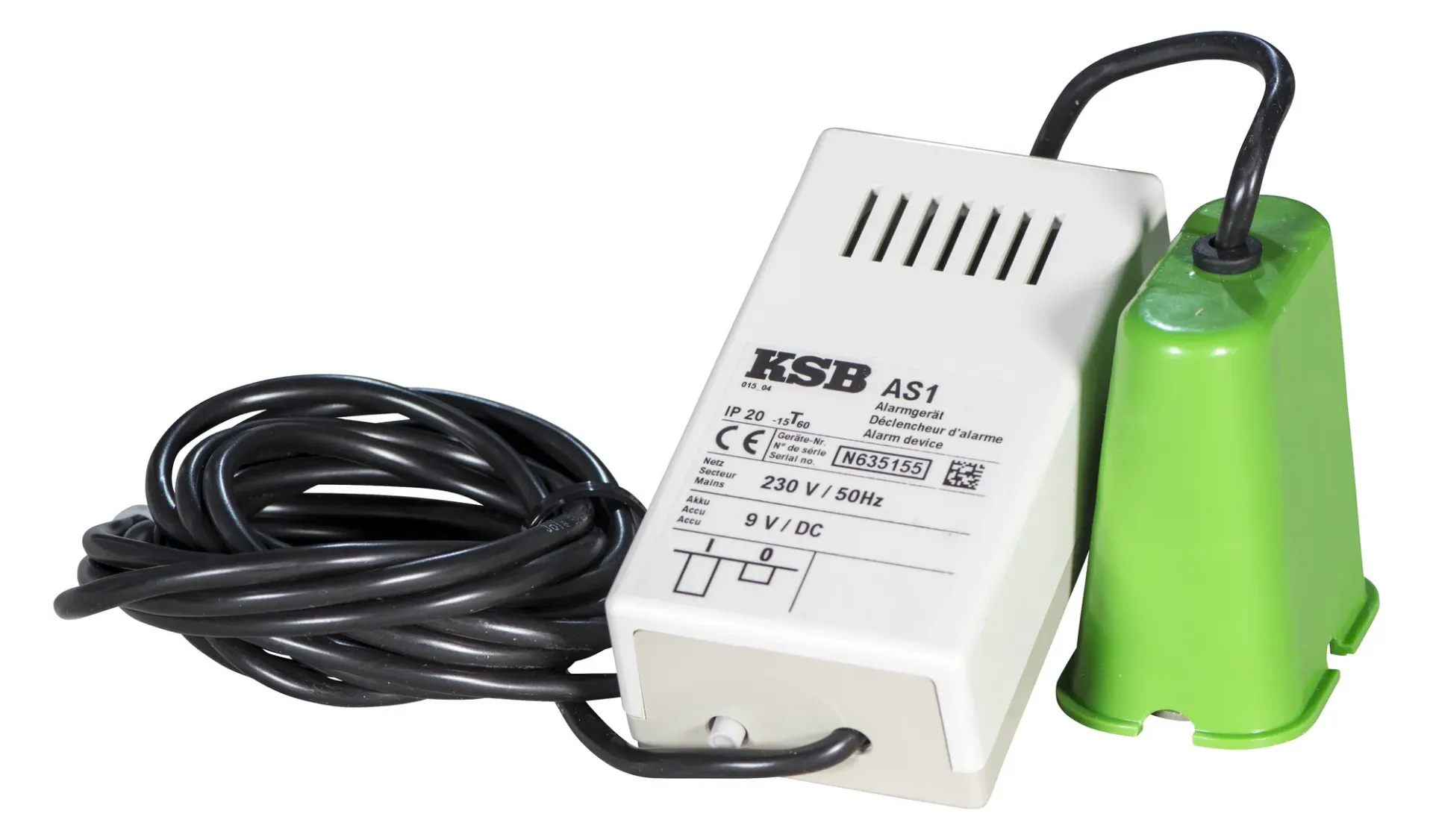

Alarm switch gear AS 0 1-230V, 50Hz, Alarmsignal 85db(A)

Image similar

Product Data

Reference Number: AR18255
Manufacturer: KSB
Manufacturer number: 00533740
Series: Ama-Drainer-Box
Product Type: Pumping/ lifting stations
Year of manufacture: 2025
Condition: B1: unused / as new
Shipping Weight: 0.50 kg
Price: 301.69 €
Supplier: ABResale

Description

AS 1 alarm switching device in ISO plug housing for mains-independent alarm signalling. The device is equipped with a self-charging power supply unit and provides up to 5 hours of operation in the event of a power failure.

The alarm is triggered by an acoustic signal of 70 dB(A). The device is equipped with an off switch and an attached signal generator with a 3 m connection cable.

The maximum operating temperature is 60 °C. The alarm switching device is not suitable for use with steam or condensate.

The rated operating voltage according to IEC 38 is 1/N/AC 230 V / 50 Hz. The control voltage is DC 9 V, and the rated insulation voltage is AC 690 V.

The device has protection class IP20 and is intended for use in a TN-C-S network. The housing is made of plastic.

Dimensions: 120 x 65 x 40 mm
Weight: 0.9 kg
Article number: 00533740
EAN/GTIN: 4031932104944
Material price group: 73.

Back to Overview Request Quote

Ama-Drainer-Box

The Ama-Drainer-Box pumping station is available as an Above-floor-Box-B or an Under-floor-Box-U execution and as single or double pump unit. The collecting tank is made of impact-resistant plastic. Box-U has a cover with level-adjusting extension and a cover plate with floor drain and siphon trap. Box-B has an odour-p ...
